Falcon is a vibration sensing system, and UVAS (Upbeat Vibration Analysis Suite) is the GUI software built to work with it. Falcon is available in two variants:
Falcon and UVAS enable data collection and rapid validation of frequency-analysis capabilities using UPM01D vibration sensor with UP201 or UP301 SoC. UVAS receives vibration data from Falcon and displays the results in real time. Falcon provides a practical platform for demos, validation, and machine monitoring.
Falcon provides two main capabilities:
This capability helps users collect vibration data for validation and later analysis. It includes real-time preview and data recording.
UVAS can show vibration data in real time. Users can view:
This helps users check whether the signal is clear and stable.
UVAS can record received vibration data for later analysis. It can generate .wav and .csv files containing g values. This is useful for validation, offline analysis, and dataset collection.
This capability helps users quickly validate the frequency-analysis capabilities of the UPM01D vibration sensor with the UP201 or UP301 SoC. It includes:

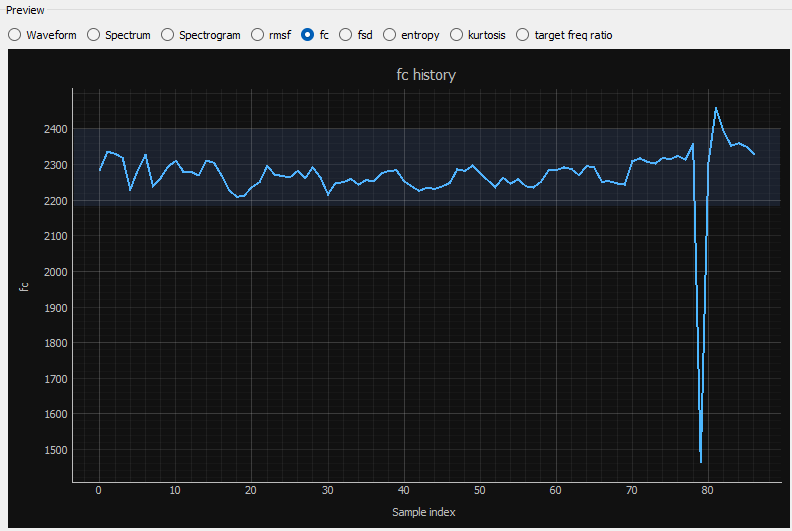

UVAS can calculate vibration spectral features, such as:
rmsffcfsdentropykurtosisThese features help users understand signal changes and machine status.
UVAS can use these vibration features to learn a normal baseline and compare new data against it. It can label the result as NORMAL or ANOMALY. This function is useful for machine health monitoring.
UVAS can check if a target frequency band is present.This is useful when users want to monitor:

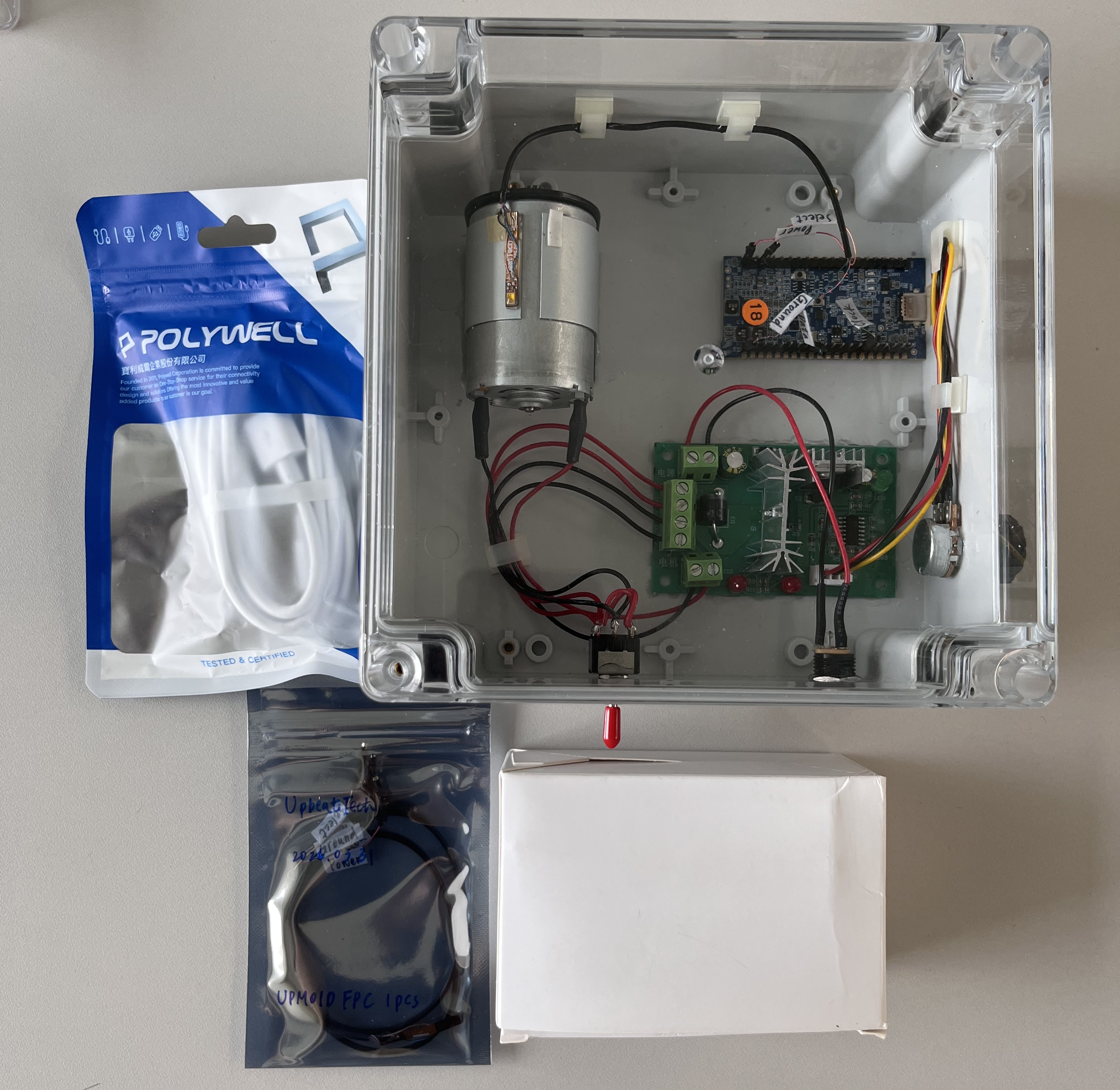

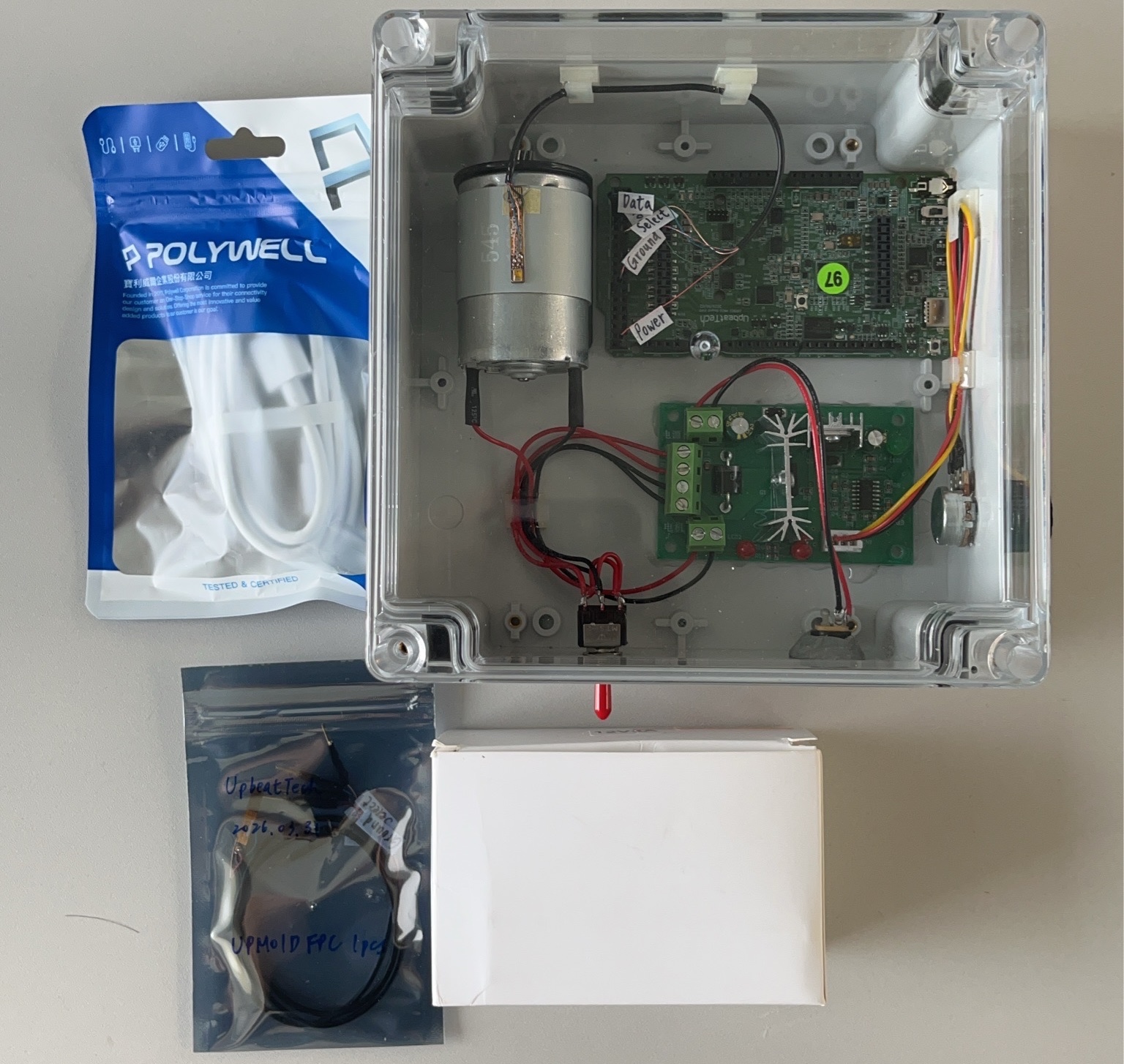

The Falcon package includes:
